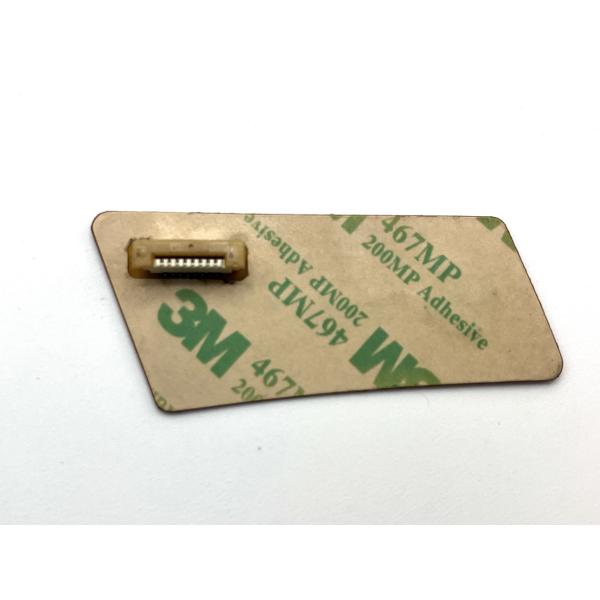

Free Proof EL Membrane Keypad Overlay For Industry Equipment

Overview of Membrane Keypad Overlays

Key Features

1. Functionality:

   • Protective Layer: Acts as a protective barrier against moisture, dust, and mechanical wear.
   • Tactile Features: Some overlays include raised or indented areas to provide tactile feedback when buttons are pressed.

2. Design:

   • Graphics and Symbols: The overlay typically includes printed graphics, symbols, and text that guide the user in operating the device.
   • Custom Shapes: Overlays can be designed in various shapes and sizes to fit specific applications.

3. Materials:

   • Substrate: Commonly made from polyester or polycarbonate, which provides durability and flexibility.
   • Printing Techniques: Graphics can be printed using methods like UV printing or screen printing, ensuring clarity and longevity.

Benefits

• Durability: Resists wear and tear, making it suitable for high-use environments.
• Water and Dust Resistance: Protects underlying electronics from environmental factors.
• Aesthetic Appeal: Available in various colors and finishes, allowing for customized branding and design.

Applications

• Consumer Electronics: Used in devices like remote controls, microwaves, and gaming consoles.
• Industrial Equipment: Common in control panels for machinery and automation systems.
• Medical Devices: Found in diagnostic equipment and patient monitoring systems, where user-friendliness is critical.
• Automotive Controls: Used in dashboards and control panels for vehicle operation.

Considerations

• Design Complexity: Designing an effective overlay requires careful consideration of user experience and readability.
• Adhesion: The overlay must be properly adhered to the underlying surface to ensure longevity and functionality.
• Repair and Replacement: Overlays can be replaced if damaged, but the entire membrane switch may need to be replaced if the underlying electronics are affected.

Membrane switch Performance Index

Product spec :

Common membrane keypad structure choose :







Other photo show :



About ShenZhen TaiDa Menbrane switch CO.,LTD

Taida are an OEM professional specializing in designing and manufacturing membrane switch ,graphic overlay and adhesive sticker/labels with with more than 15 years experience in Shenzhen of China which are widely used in industrial,electronics,household appliance,medical equipments.we have more than 500 different customers .and most of our customer come from USA ,EU ,UK ,middle east and other famous country of world wide.Taida can supply different kinds of Membrane switch based on each client's request .

Factory Strength:
Factory Area: Over 2000 Square meters
Employee :＞ 70

R＆D
Continued quality improvement ,professional Tech support and latest design
From our R＆D department for customers’ demand or samples

Manufacturing
Strong productivity and unified producing process to ensure the fastest delivery time.

QC/QA
20% Employee are QC/QA workers ,quality Guaranteed

Dispatch Department
Power dispatch ability to ensure shipping accuracy and speed

Sales ＆ Customers
Overall ,close and long-term service,No matter in saling and after-sales
Many customers show in our company from worldwide

Taida is a factory and was founded in the 2010 year in China, which focus on the professional design and manufacture of Membrane Switch and Graphic overlays (including different many kinds membrane switch and graphic overlay ,such like LED ,FPC circuit ,waterproof and tactile ,PMMA ,protective film and so on )manufacturers,

Experience:

Taida and engineers have Highly over 15 years experienced on Membrane switch and graphic overlay designs, 500+ customers from worldwide such like USA,UK ,Germany and others , 1000+ new designs per year

Factory Strength and Production Capacity:

Over 2000 square meters of modern plant, spacious and bright clean workshop; more than 25 full Automatic and Semi-Automatic printing machine and other professional Automation equipment,such like testing machine ,UV machine and so on , Taida’ capability has reached 300, 000PCS/month in a very short period since company established.

Quality Control and Ensure :

Taida has got certification of ISO9001: 2000, and also the accreditation for RoHS ,REACH ,UL SGS to meet customer′s requirements.All workers are fully trained before going to production line.and Ensure 100% testing and inspecting before shipping .

Speed & Efficiency:

Concept to Design: < 3 business days

Goods lead time : 12-15 days

Rapid Prototyping: 4-7 days

Overseas Manufacturing

Utilized for larger production volumes and to ensure we can offer the most competitive pricing and Fast lead time to our customers
